Solar Switchboard Upgrade for Battery and Ducted Air Conditioning in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Choosing Precision Electrical & Air for Your Switchboard Upgrade

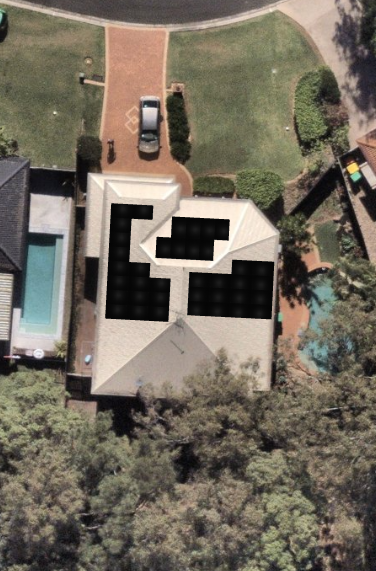

This homeowner in Chelmer undertook a major renovation that involved the installation of a 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the home. Additionally, a new ducted air conditioning system was included as part of the project. Before connecting these advanced systems, it was paramount to assess and upgrade the existing switchboard to ensure compliance with current standards and to effectively manage the increased electrical loads that these installations would create.

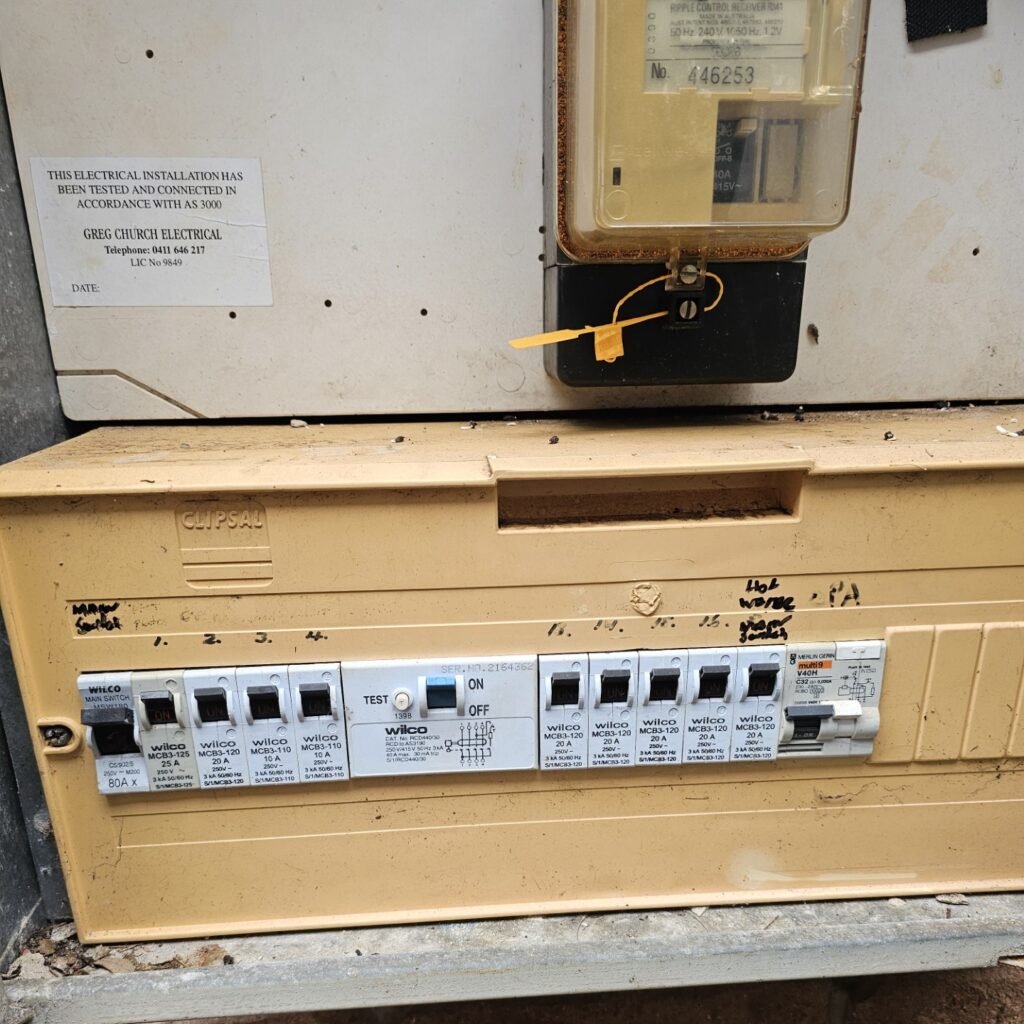

The original switchboard was outdated and equipped with obsolete circuit breakers, a single Residual Current Device (RCD) that provided protection for the entire property, and was incapable of integrating solar energy and battery storage. Moreover, the circuit labeling was insufficient, rendering it non-compliant with modern standards that govern contemporary energy generation systems. This lack of compliance posed a risk to the efficient operation of the upgraded systems.

Is a Three-Phase Upgrade Really Required for Your System?

Considering the specifications of a 17.86kW solar system coupled with a 30kWh battery, it is a common misconception that a three-phase upgrade may be necessary. This misunderstanding could lead to significant expenses for the homeowner, potentially costing between $3,500 and $6,000, along with an extended wait for approval from Energex for the network modifications.

Thorough Initial Technical Evaluation Performed

Two critical factors played a major role in determining whether a three-phase upgrade was essential. Firstly, the supply cable for the residence was strategically situated near the street junction. This position allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are designed to decrease demand on the grid rather than increase it, there was no technical justification from the network's perspective requiring a three-phase upgrade. Additionally, the ducted air conditioning system was also found to comply with the necessary parameters for efficient single-phase operation.

As a result, the decision was made to retain the single-phase configuration. The switchboard was upgraded to ensure it could safely and competently accommodate all new electrical loads without compromising safety or compliance.

In-Depth Analysis of Installed Components for Enhanced Safety

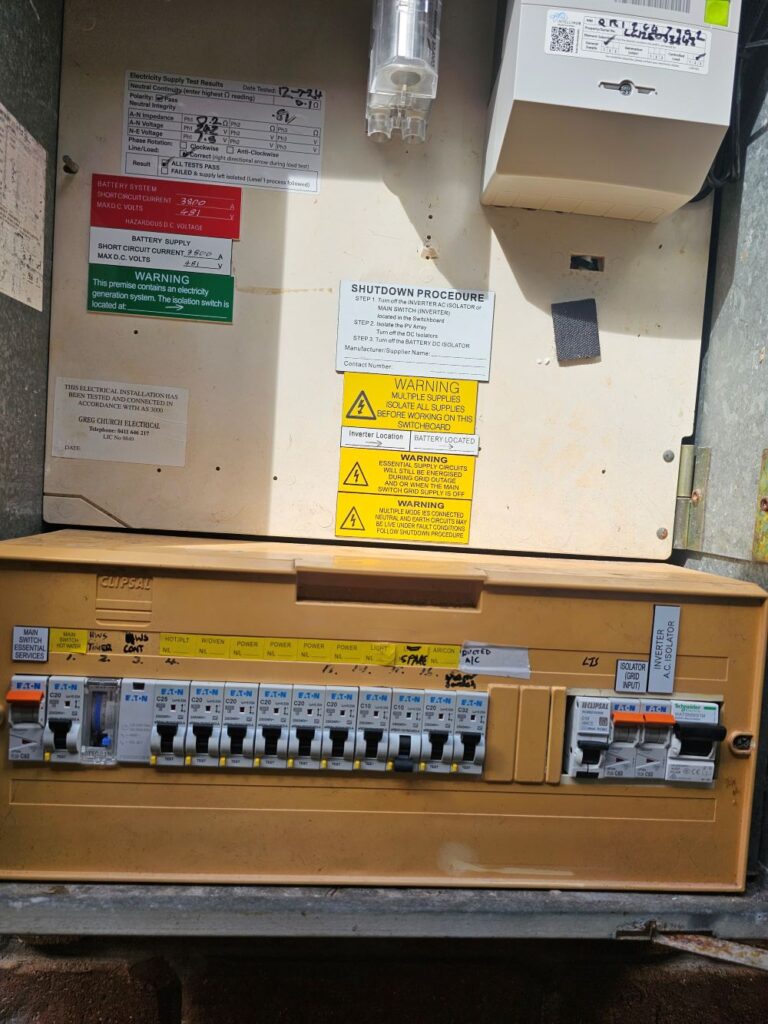

The existing switchboard was completely dismantled and underwent an extensive reconfiguration process. Every circuit breaker was replaced with new, correctly rated units from Eaton, and each was meticulously labeled for easy identification. The circuits were carefully separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and compliance with current regulations.

A timer was integrated into the hot water service to ensure it operates efficiently during peak solar generation hours. This strategic addition minimizes dependence on the grid by optimizing the use of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to guarantee proper functionality.

The upgraded switchboard was designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labeling that clearly stated the battery system rating at 481V DC with a short-circuit current of 3800A, in addition to multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted, successfully passing and documented for the switchboard.

The finished switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property.

Homeowner Benefits from Successful Upgrade

The homeowner has successfully obtained a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary costs associated with a three-phase upgrade that was not essential for their specific situation.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required. If you've received a hefty quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to perform a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will use to approve your property.

We guarantee no upselling occurs; you will receive an accurate answer tailored to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The evaluation relies on two primary aspects: voltage rise and load demand. Electricians assess the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex allows a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is sufficient. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the system alone does not dictate the need for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favorable and no new high-demand loads are introduced to the property. The critical factors to consider include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not merely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, leading to a higher voltage rise during energy export. Excessive voltage rise can create complications for neighboring properties connected to the same line. Network distributors such as Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to determine if single-phase or three-phase power is appropriate for your property.
