Air Conditioning Installation: Ducted and Split Systems in Tarragindi

Precision Electrical & Air successfully executed a detailed air conditioning installation involving two distinct systems at a residential property in Tarragindi. This project encompassed the provision and installation of a Daikin ducted air conditioning system for the upper level and a Daikin high-wall split system in the living room on the lower level.

Expert Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

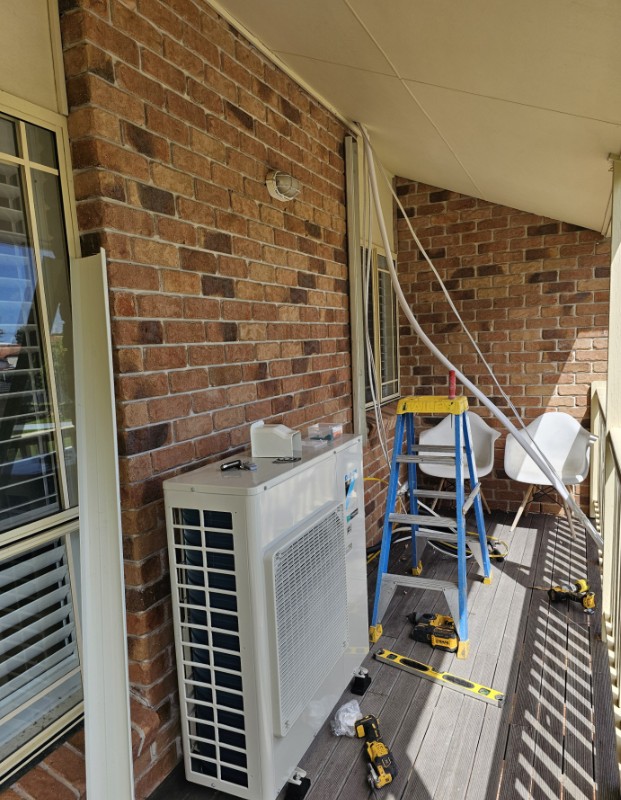

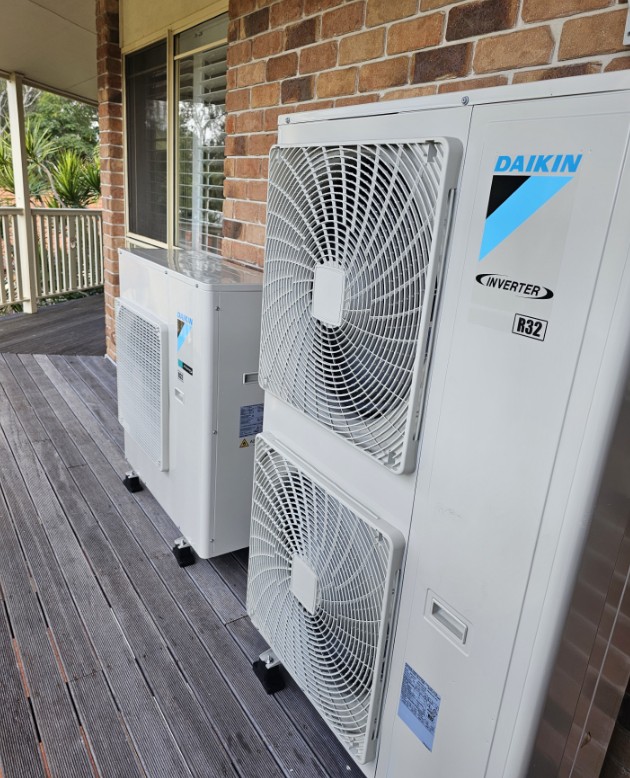

Precision Electrical & Air expertly handled the installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically positioned within the ceiling space above the void, while the condenser was securely mounted on the front balcony wall using rubber feet to minimize vibrations. The connection between the indoor and outdoor units was efficiently enclosed in ducting as it exited the ceiling space.

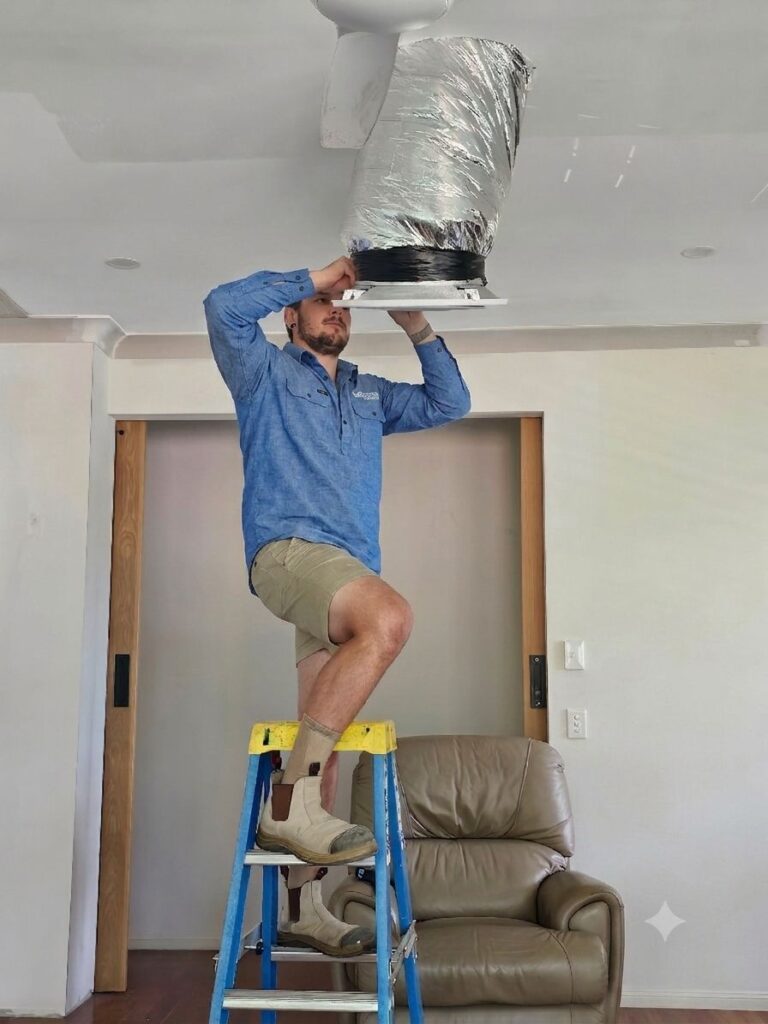

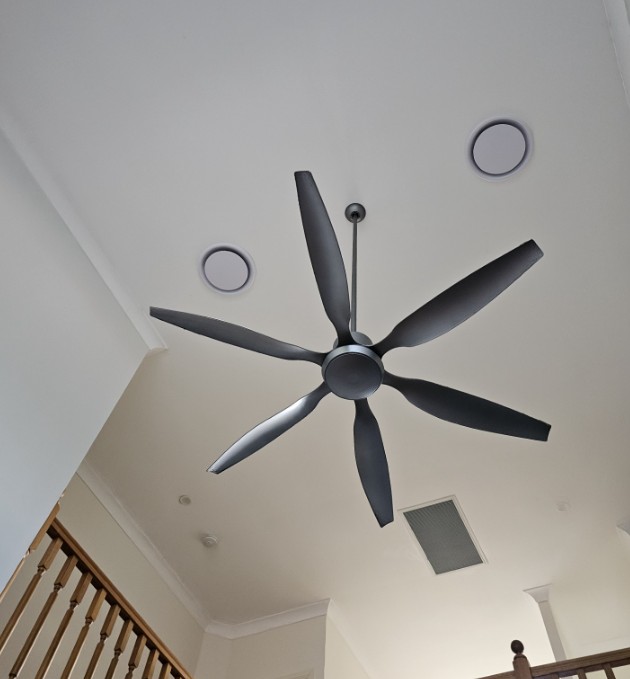

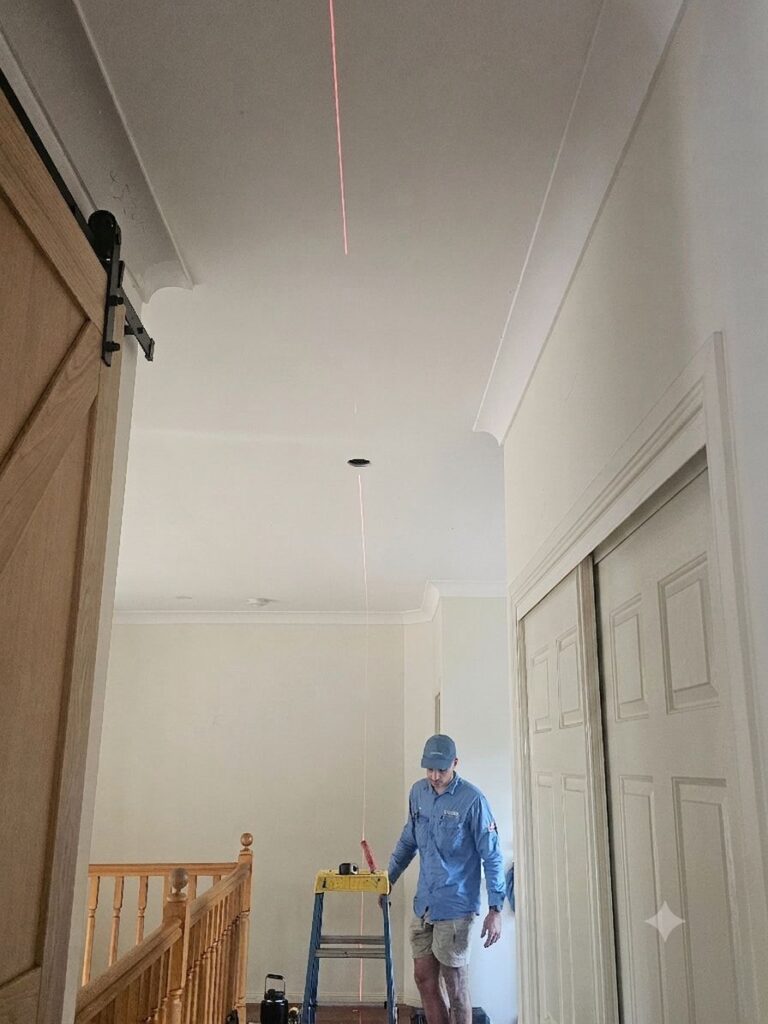

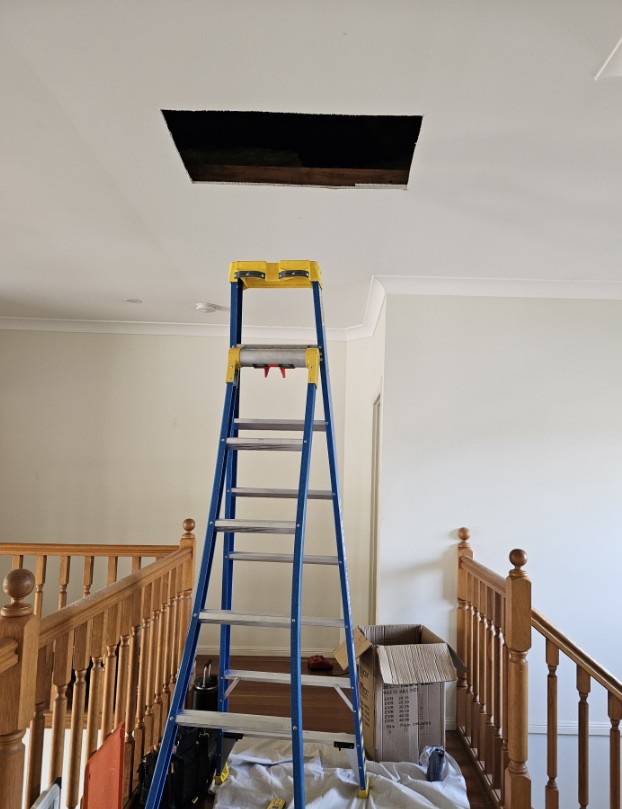

To facilitate proper drainage, two drainage systems were installed from the indoor unit and its safety tray to the external gutter. Comprehensive ducting, branch take-offs, zone motors, and air plenums were meticulously installed throughout the ceiling space, all connecting to the indoor unit. A return air grille was thoughtfully placed in the upstairs hallway to ensure optimal air circulation and efficiency.

A dedicated electrical sub circuit was established, running from the switchboard to the outdoor unit, complete with an NHP isolation switch installed adjacent to the condenser. a MyZone Multipoint touchpad zone controller was fitted in the upstairs hallway, providing enhanced control over the air conditioning system and its zones.

Professional Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

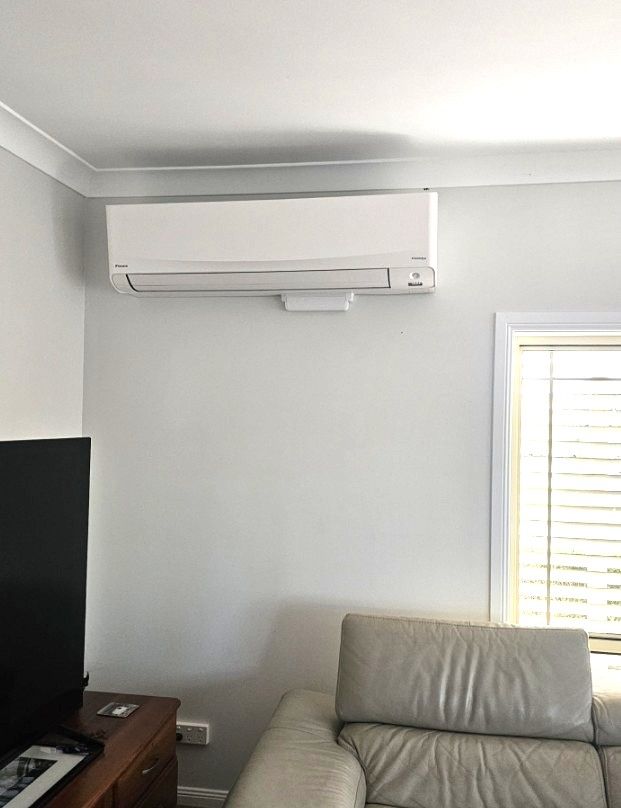

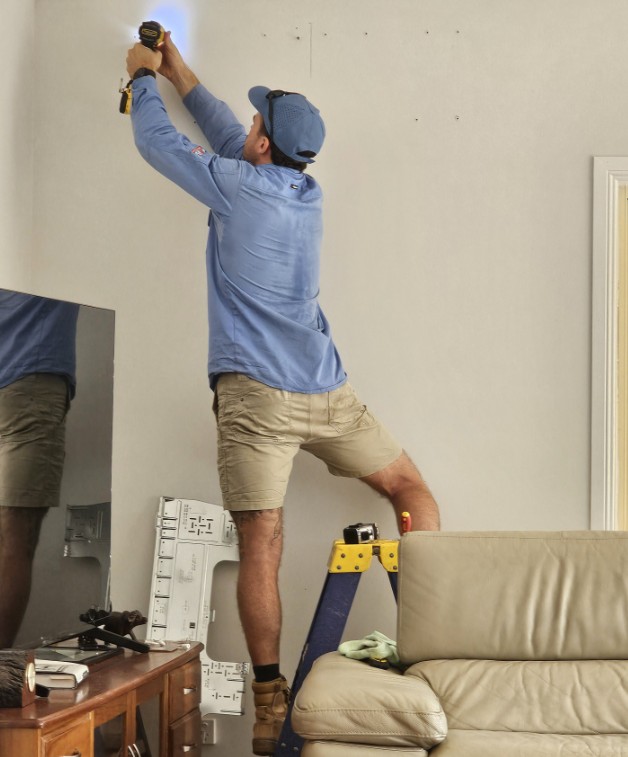

In the downstairs living room, the installation of the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was completed. This installation involved the new ducting, interconnect cables, and copper pair coil required for linking the indoor and outdoor units, with the condenser mounted on rubber feet to further reduce vibrations.

A dedicated electrical circuit was created from the switchboard to the condenser, incorporating an NHP isolation switch for safety purposes. To effectively manage condensation, an Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe. The entire system underwent thorough commissioning to ensure it operates at peak performance levels.

Overview of the Installation Outcomes

This installation has equipped the property with efficient zoned ducted heating and cooling for the upper level, complemented by a dedicated high-wall split system for the downstairs living area. Both Daikin systems were installed in strict accordance with manufacturer specifications, ensuring that all electrical circuits and drainage systems were properly configured and functional.
